Exploration: a better terminal statusbar (betterstatus)

I take responsibility for every word in this post. An LLM was consulted for research.

Some terminal applications display a progress bar at the bottom while they are in progress. A famous example is the apt package manager.

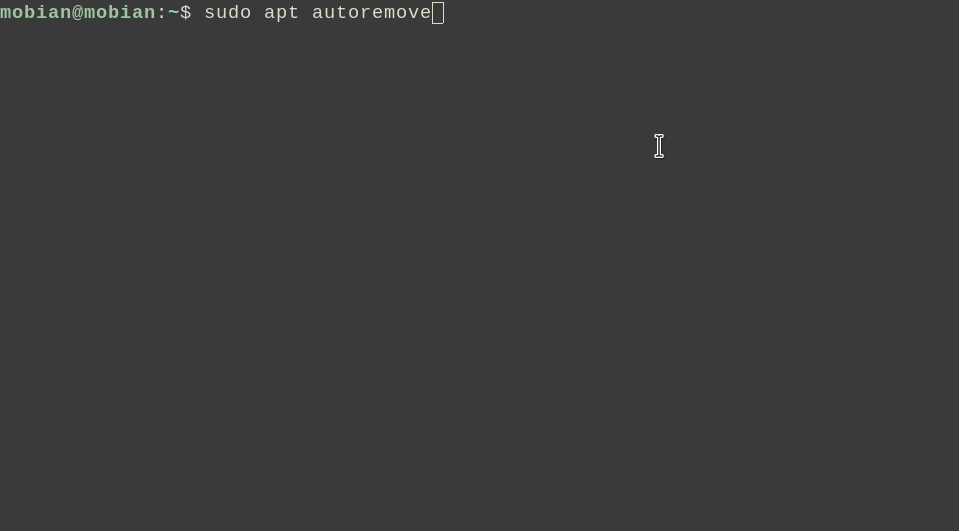

Apt autoremove output

Credits: https://mdk.fr/blog/how-apt-does-its-fancy-progress-bar.html.

The way this effect is achieved is interesting, because statusbars are not a feature native to terminals. Rather, the illusion of a statusbar is maintained by sending a sequence of ANSI escape codes to the terminal for each line of regular output. Here's one possible way to do it:

Print the regular line of output with a newline — now the cursor is on the next line.
Send the escape code ESC 7 ^(*) to tell the terminal to save the cursor position.
The ANSI codes for saving and restoring cursor position have actually never been standardised. The DEC standard uses ESC 7 for saving whereas the SCO standard uses ESC [ s. Nevertheless, modern terminal emulators like xterm generally support both standards, but for the purposes of this post I will follow the DEC standard.
Send ESC [ n ; 0 H to position the cursor at the beginning of the bottom line. n is the number of lines in the terminal, which the application should know beforehand.
Print the statusbar line. (Note if the statusbar only uses up part of the terminal width, then something like ESC [ 2 K may have to be sent before to clear the previous statusbar line.)
Send ESC 8 to restore the cursor position which was saved in step 1. We are now ready to print another line of regular output.

There is a major shortcoming with this approach: the application must be in control over every line of output. This is not a big deal for apt because every line of output is its own. But it could potentially be an issue in other cases. Suppose you are writing a script that has multiple stages. Each stage calls an external application and takes a while to finish, so you might want a statusbar that displays the current stage for easy reference. For instance, you could be writing an installation script whose stages are configure, make and

make
install

betterstatus is my proof-of-concept answer to this issue. Let me demonstrate by example. Suppose this is my original script.sh:

#!/bin/bash
./configure
make
make install

So far, no statusbar. To integrate betterstatus, the script is modified as follows:

#!/bin/bash
status-set "Configuring..."
./configure
status-set "Building..."
make
status-set "Installing..."
make install

Then, the script is executed by calling status "" ./script.sh ^(*). That's it!

The first parameter to status sets the initial statusbar line before the first status-set. In this case, we already call status-set at the very beginning of the script, so the parameter doesn't matter and we just make it blank.

The main idea behind status is that it redirects the application's stdout into a UNIX pipe ^(*). It then reads data from the same pipe and applies some post-processing before writing to the terminal. Actually, it reads character-by-character and lets all non-newline characters pass through. Only when we encounter a \n do we perform the whole shenanigan with ANSI escape codes ^(*).

More accurately, it opens a pipe() and then fork()'s itself. The parent closes the write end of the pipe while the child closes the read end and exec()'s the application. This is also how shell redirection is implemented.

Actually the code does something simpler than the 5-step process above. Suppose the terminal looks like this right before the application outputs a \n:

Line 1
Line 2‸
STATUS MESSAGE

After the newline, it looks like

Line 1
Line 2
STATUS MESSAGE
‸

Then it writes the status message (stored in a variable) and uses ESC [ F move back to the beginning of the previous line.

Line 1
Line 2
‸STATUS MESSAGE
STATUS MESSAGE

Finally, it uses ESC [ K to erase the entire line, leaving space for the next line of regular output.

Line 1
Line 2
‸
STATUS MESSAGE

But this is only part of the equation. How does status-set communicate the status message with status? Since these are two separate executables, we have to use inter-process communication (IPC). After briefly looking through the IPC mechanisms, I settled on POSIX message queues because

status-set only needs to send data occasionally to status. This rules out pipes which imply a continuous data stream.
Signals are too limited; essentially they can only transmit numerical codes.
Sockets seemed like overkill.
Shared memory while theoretically possible, was conceptually orthogonal to my use case.

POSIX message queues can be shared across multiple processes and they are simply identified by their name, e.g. /statusXXX ^(*). And the interface is as simple as one would expect: status and status-set call mq_open("/statusXXX"), status-set periodically mq_send()'s the new statusbar line, and status mq_receive()'s it and updates its internal variable. The message queue is opened with the O_NONBLOCK option, so that mq_receive() doesn't block and stall output.

The slash is just part of the specification of the name. It does not refer to a path in the filesystem.

But now there's a new problem: how does status and status-get agree on the name of the message queue (in particular the XXX part) in the first place? Based on the example above, they don't even communicate with each over! And we can't use a fixed name like /status, because that would prevent us from running multiple instances of status. It looks like we just kicked the communication can down the road!

Fortunately, there does exist an indirect form of communication: environment variables. status assigns the message queue name to the environment variable STATUS_MQ, and propagates it via the application to status-set ^(*). So all is good!

The implicit assumption is that the status and status-set processes are "related" to each other in the sense that status-set is executed within the scope of the application. This is entirely reasonable: there is no reason to let status-set change the statusbar in an instance of status running in say, another terminal window.
